DeCap Decapper
Automated decapping of sample tubes
Automated decapping of sample tubes to reduce repetitive tasks and the risk for laboratory professionals
Automated decapping of sample tubes can be a huge support for laboratories. Although the job appears to be simple enough, removing the cap from an evacuated blood sample tube can be a demanding task. The repetitive action of manually decapping of sample tubes can cause fatigue and bring on chronic symptoms, such as Carpal Tunnel syndrome. Aerosol spray during cap removal can be dangerous for your employees and can lead to contamination of the specimen; even cross contamination. If tubes are left open for an extended period of time, there is an even greater risk of altering the specimen through contamination, oxidation, or evaporation. Transporting open tubes through the lab is equally detrimental to the integrity of the specimen.
An efficient and cost effective solution
These problems can be minimized by automated decapping of sample tubes as close to the analyzers as possible. Our DeCap decappers are compact, efficient, and cost effective bench top instruments that can be easily located next to the analyzer. Potential personnel health issues and specimen problems are reduced simultaneously, and the quality of your Pre-Analytical processes can be noticeably improved.

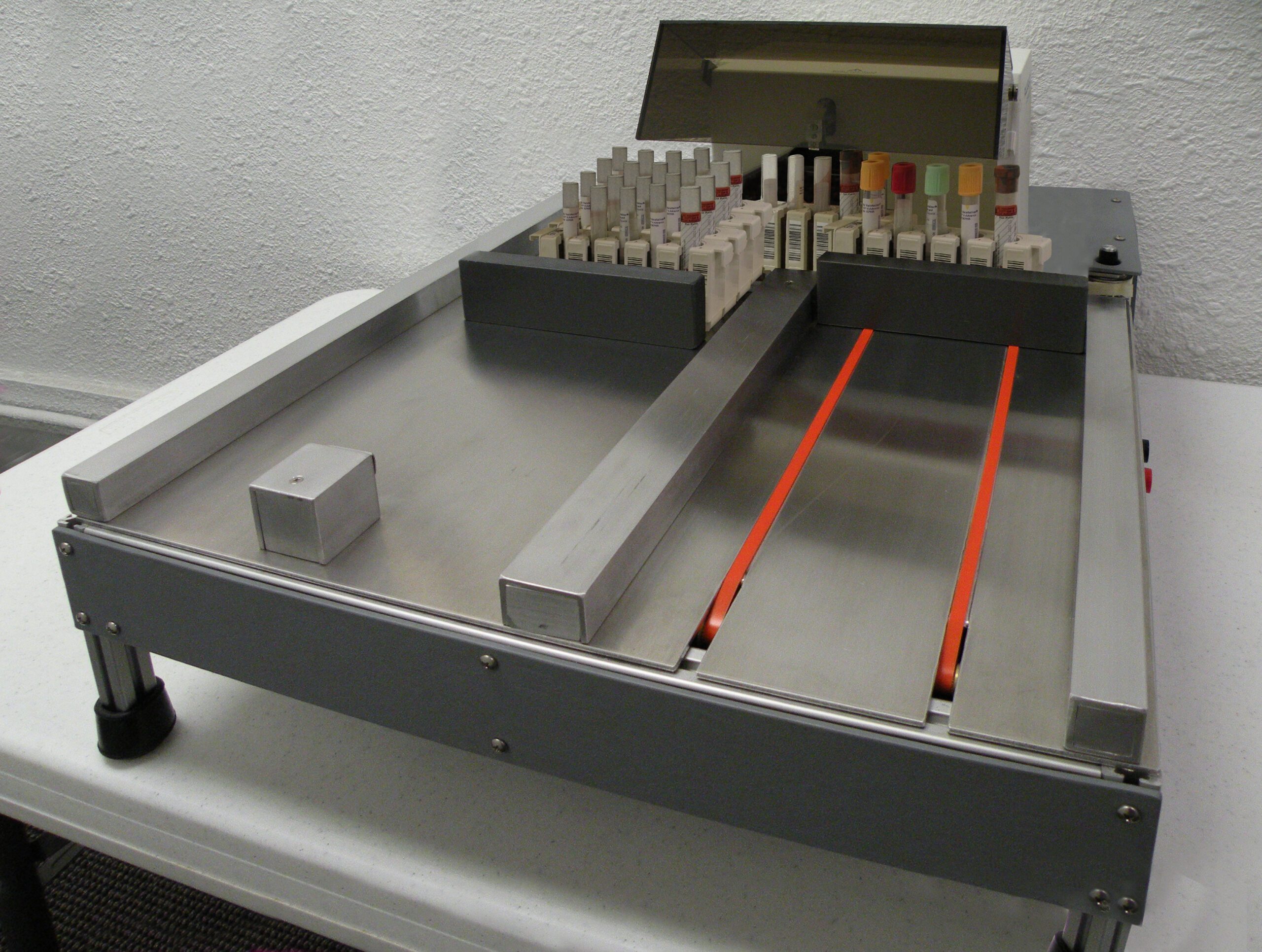

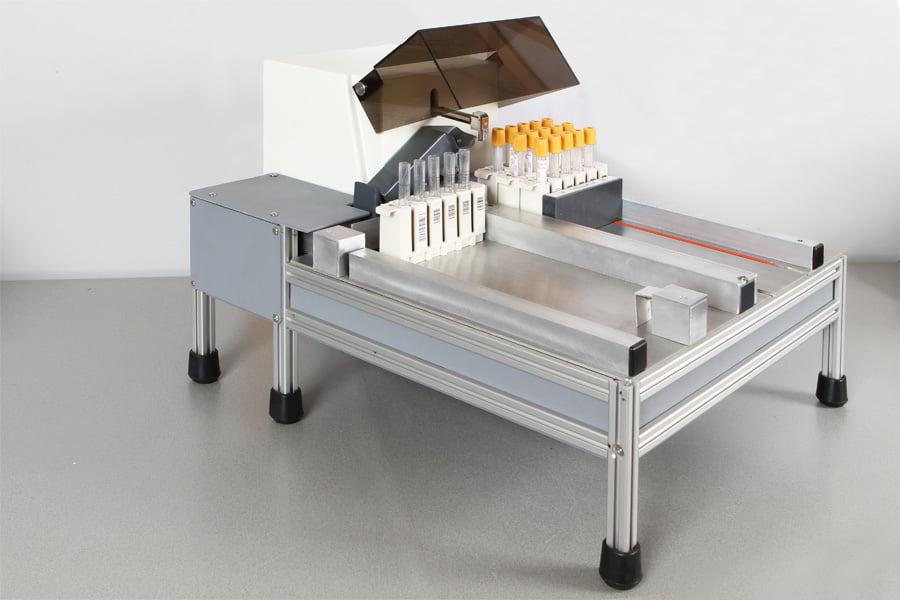

DeCap Pro – automated decapping of sample tubes with rack handling
Automatic, compact, bench-top
Our DeCap Pro is a compact bench-top device for automated decapping of sample tubes. Tubes in an analyzer rack are put in the inlet channel; tubes stay in the rack during decapping. The inlet channel holds up to 15 racks that are automatically processed. Racks with tubes that have been decapped are pushed into the outlet channel. Removed caps are guided to an outlet for collection of biohazard disposal with a detachable chute.
For specimens with pull-off caps
DeCap PRO processes tubes with pull caps only. It is designed for 100 mm tubes. Smaller tubes can be handled by means of an adapter tube which stays in the rack during analysis. Models for 75 mm only tubes are available on request.
More safety for your staff, with high speed
DeCap Pro reduces the possibility of Repetitive Strain Injury and combines safety and simplicity of operation with efficient and hygienic tube handling for laboratory staff. Occupying a minimum of bench space, DeCap Pro can process nearly fifty tubes per minute and always keeps up with following process steps.
The use of DeCap Pro for decapping of sample tubes helps resolving bottlenecks in the Pre-Analytics and supports the uninterrupted supply of analytic areas with specimens. Using the DeCap PRO is remarkably easy: place the racks in the inlet channel and press the START button. The DeCap PRO operates fully automatically and unattended. More racks can be added to the inlet channel or removed from the outlet channel at any time without stopping the instrument.
DeCap Pro’s robust and simple design guarantees high reliability and uptime. Daily maintenance is minimal, consisting only of the routine cleaning job.
Available for the following rack types*:
-
Roche Cobas® /Hitachi
-
Abbott Architect™
-
Beckman (Olympus) AU
-
Siemens Centaur ® XP
-
Iris/Sysmex
-
*Other rack types are available on request
Technical specification – DeCap Pro
-
Capacity: Up to 15 racks each for input and output
-
Supported sample tubes: Tubes with pull caps e.g. BD VacutainerTM, GBO VacuetteTM, more
-
Processing speed: Over 2.000 tubes per hour
-
Dimensions: W x H x D 560 x 610 x 360 mm
-
Weight: 23 kg
-
Supply voltage: 230V 50Hz / 110V 60Hz
-
Power consumption: 40 VA

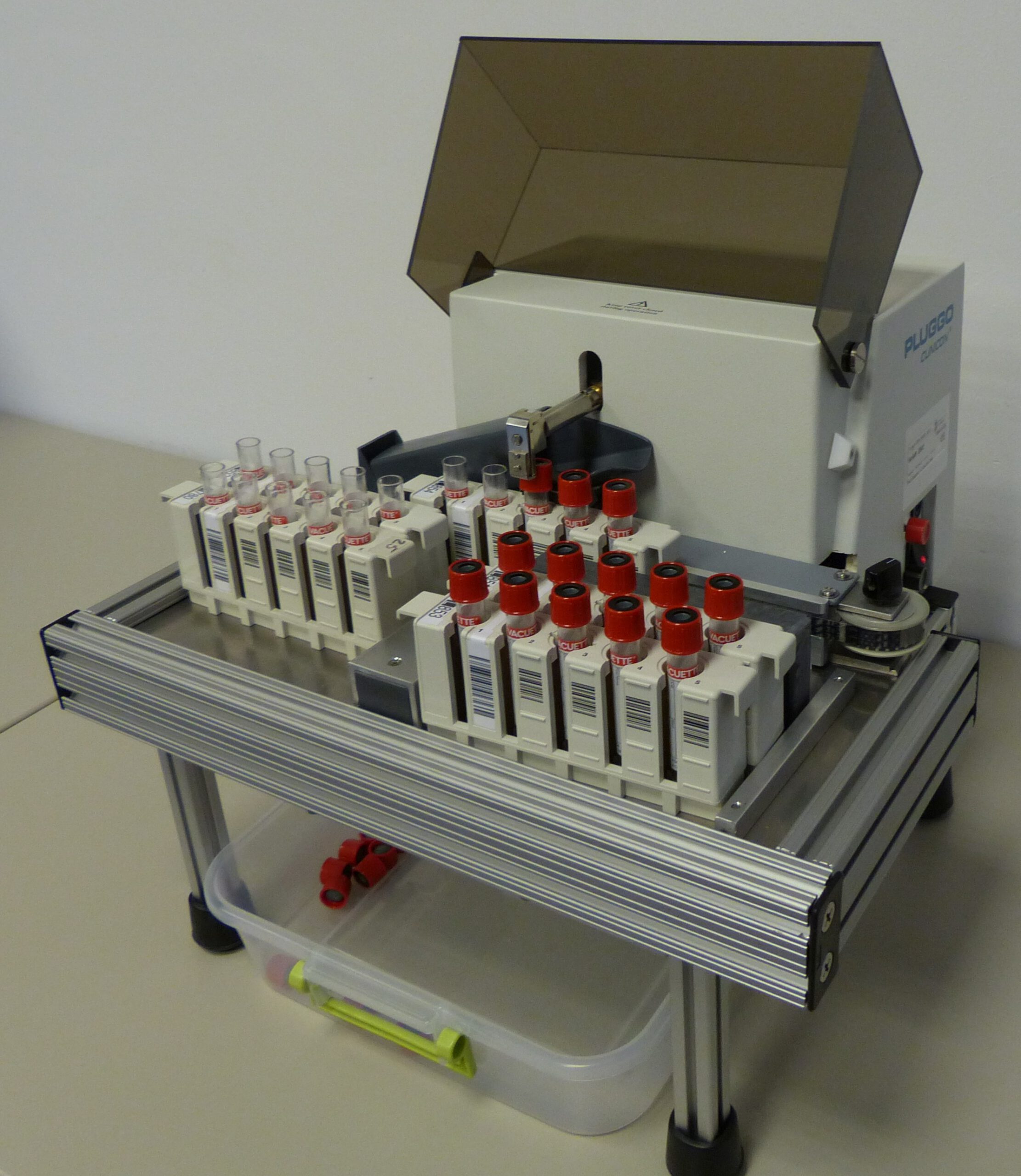

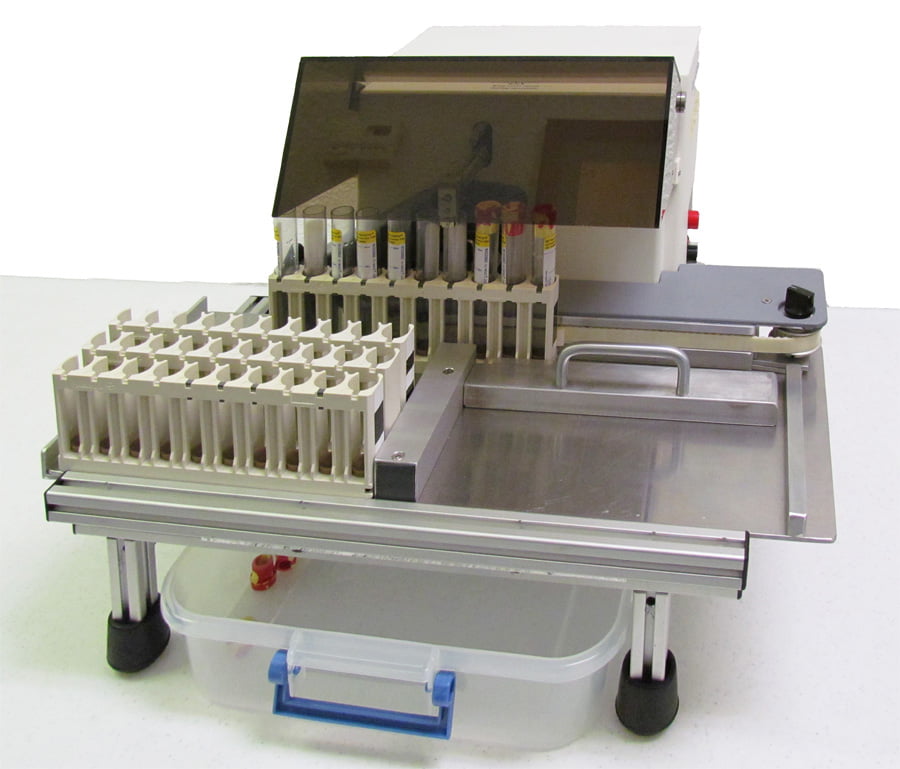

DeCap eco – Decapper decapping of sample tubes in smaller quantities
Compact device for smaller volumes

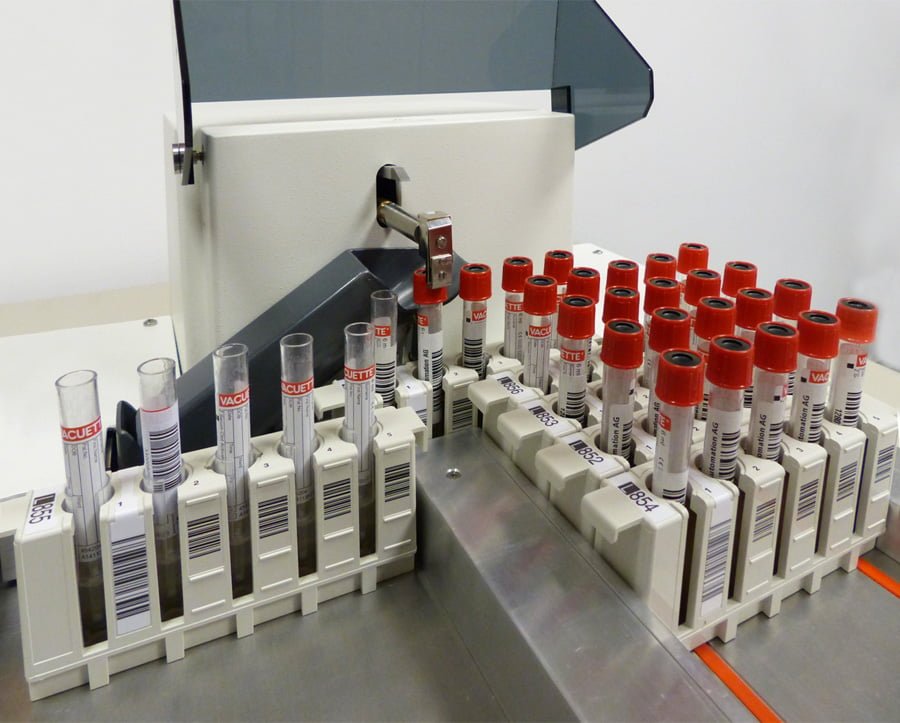

Our DeCap eco decapper is made for decapping of sample tubes. Analyzer racks filled with tubes are placed in the inlet channel and are manually forwarded to the decapping station. The device processes one rack at a time. The tubes stay in the racks during decapping. Removed caps are guided to an outlet for collection of biohazard disposal with a detachable chute.
DeCap eco processes tubes with pull caps only. It is designed for 100 mm tubes. Smaller tubes can be handled by means of an adapter tube which stays in the rack during analysis. Models for 75 mm only tubes are available on request.
Compact, but robust like a Pro!
The simple design guarantees a high reliability, minimal service requirements, and the easiest of use. The DeCap eco is designed specifically to be a compact and reliable alternative for labs where the throughput is too small to require complete automation yet large enough where manual decapping could be a strain on personnel.
Available for the following rack types*:
- Roche Cobas® /Hitachi
- Abbott Architect™
- Beckman (Olympus) AU
- Siemens Centaur ® XP
- Iris/Sysmex
- Hamilton
- Tecan
- DiaSorin ETI-Max
- *Other rack types are available on request
Technical specification – DeCap eco
-
Capacity: 1 rack
-
Supported sample tubes: Tubes with pull caps e.g. BD VacutainerTM, GBO VacuetteTM, more
-
Processing speed: Over 2.000 tubes per hour
-
Dimensions: W x H x D 410 x 410 x 310 mm
-
Weight: 12.7 kg
-
Supply voltage: 230V 50Hz / 110V 60Hz
-
Power consumption: 36 VA
